RF67減速機重量：RF67減速機重量27公斤，RF67減速機帶電機重量分別如下：

RF67減速機帶0.12KW電機重量32.5公斤,RF67減速機帶0.18KW電機重量33公斤,RF67減速機帶0.25KW電機重量37公斤,RF67減速機帶0.37KW電機重量37.5公斤,RF67減速機帶0.55KW電機重量43公斤,RF67減速機帶0.75KW電機重量44公斤,RF67減速機帶1.1KW電機重量47公斤,RF67減速機帶1.5KW電機重量50公斤,RF67減速機帶2.2KW電機重量59公斤,RF67減速機帶3KW電機重量62公斤,RF67減速機帶4KW電機重量73公斤,RF67減速機帶5.5KW電機重量87公斤,RF67減速機帶7.5KW電機重量100公斤。

RF67減速機加油量：可加合成油

RF67減速機M2安裝加2.4、3.2升，RF67減速機M1安裝加1.1、2.3升，RF67減速機M3安裝加2.8升，RF67減速機M4安裝加2.9升，RF67減速機M5安裝加1.8升，RF67減速機M6安裝加2升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。RF系列減速機

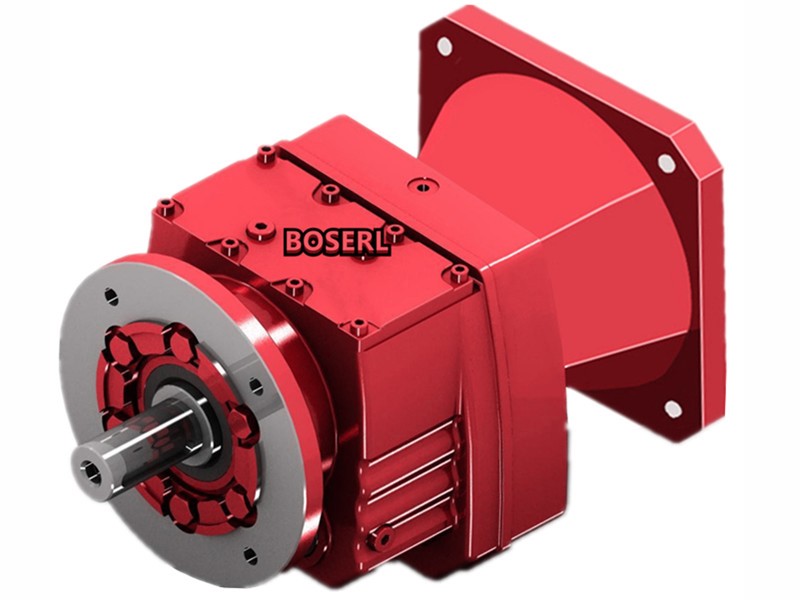

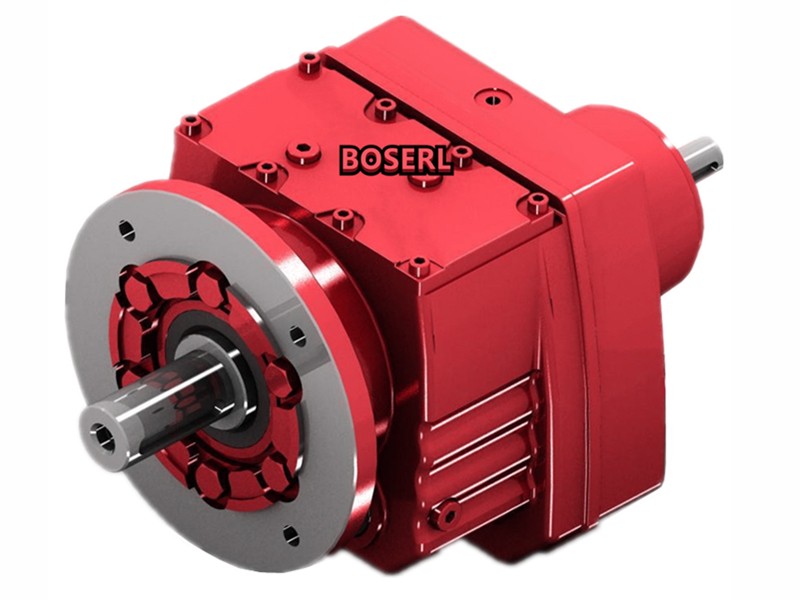

RF67減速機實物圖：圖一為RF67法蘭立式安裝斜齒輪減速機，圖二為R67底腳安裝斜齒輪減速機，圖三為RX67減速機不同心臥式底腳安裝，圖四為RXF67減速機不同心立式法蘭安裝。

RF67減速機型號表示方法：

RF67減速機型號結構RF67-B5.5KW-4P-減速比-安裝方式-接線盒位置。

RF67減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。

RF67減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。同軸減速機

RF67減速機參數：

RF67減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF67帶0.12KW,RF67帶0.18KW,RF67帶0.25KW,RF67帶0.37KW,RF67帶0.55KW,RF67帶0.75KW,RF67帶1.1KW,RF67帶1.5KW,RF67帶2.2KW,RF67帶3KW,RF67帶4KW,RF67帶5.5KW,RF67帶7.5KW。

RF67減速機輸出轉速7轉,7.6轉,8.9轉,10轉,11轉,12轉,13轉,15轉,16轉,19轉,20轉,23轉,25轉,27轉,30轉,35轉,37轉,43轉,49轉,50轉,52轉,60轉,70轉,78轉,89轉,94轉,110轉,121轉,140轉,161轉,180轉,190轉,223轉,246轉,284轉,326轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF67減速機負載扭矩270N.m,290N.m,310N.m,330N.m,370N.m,380N.m,400N.m,470N.m,500N.m,520N.m,540N.m,550N.m,560N.m,570N.m,580N.m,590N.m,600N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF67減速機減速比4.29比,4.93比,5.70比,6.27比,7.36比,7.97比,8.7比,10比,11.54比,12.70比,14.91比,15.79比,17.95比,19.89比,23.44比,26.72比,28.13比,28.83比,32.27比,37.50比,39.88比,46.29比,51.56比,56.89比,61.26比,69.75比,74.17比,86.11比,95.91比,105.83比,113.94比,128.97比,137.67比,158.14比,184.07比,199.81比。

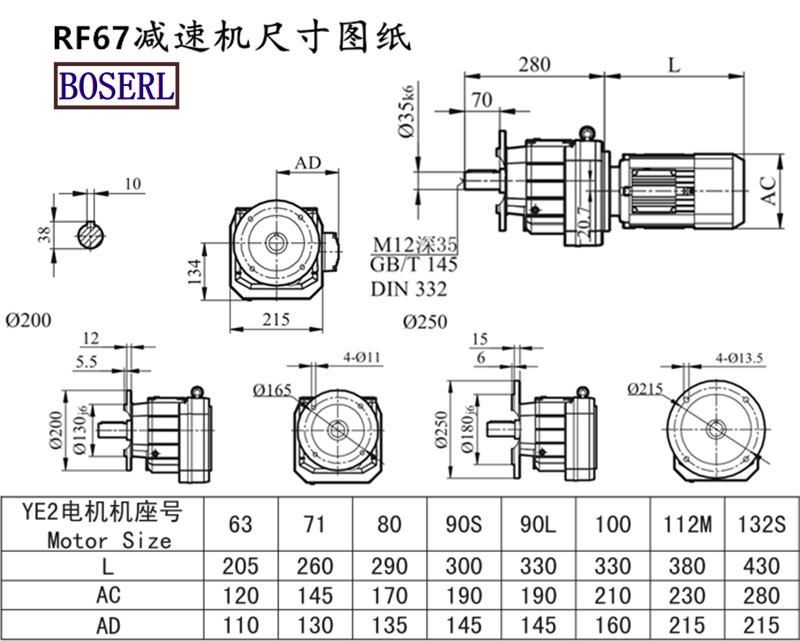

RF67減速機外形尺寸：輸出軸Φ35+鍵3（可定做），高212*寬215*長280（帶輸出軸）

RF67減速機型號：齒輪減速機RF67AQA80,RF67AQA100,RF67AQA115,RF67AQA140,RF67AQA160,RF67AQA190,RF67AQH80,RF67AQH100,RF67AQH115,RF67AQH140,RF67AQH160,RF67AQH190,JRTRF67-Y0.12KW,JRTRF67-Y0.18KW,JRTRF67-Y0.25KW,JRTRF67-Y0.37KW,JRTRF67-Y0.55KW,JRTRF67-Y0.75KW,JRTRF67-Y1.1KW,JRTRF67-Y1.5KW,JRTRF67-Y100M4,JRTRF67-Y112M4,JRTRF67-Y132M4,JRTRF67-Y2.2KW,JRTRF67-Y3KW,JRTRF67-Y4KW,JRTRF67-Y5.5KW,JRTRF67-Y63M4,JRTRF67-Y7.5KW,JRTRF67-Y71M4,JRTRF67-Y80M4,JRTRF67-Y90M4,JRTRF67-YEJ100M4,JRTRF67-YEJ112M4,JRTRF67-YEJ132M4,JRTRF67-YEJ63M4,JRTRF67-YEJ71M4,JRTRF67-YEJ80M4,JRTRF67-YEJ90M4,JRTRF67-YS100M4,JRTRF67-YS112M4,JRTRF67-YS132M4,JRTRF67-YS63M4,JRTRF67-YS71M4,JRTRF67-YS80M4,JRTRF67-YS90M4,JRTRF67-YVP100M4,JRTRF67-YVP112M4,JRTRF67-YVP132M4,JRTRF67-YVP63M4,JRTRF67-YVP71M4,JRTRF67-YVP80M4,JRTRF67-YVP90M4,JRTRF67-YVPEJ100M4,JRTRF67-YVPEJ112M4,JRTRF67-YVPEJ132M4,JRTRF67-YVPEJ63M4,JRTRF67-YVPEJ71M4,JRTRF67-YVPEJ80M4,JRTRF67-YVPEJ90M4,EWRF67-Y0.12KW,EWRF67-Y0.18KW,EWRF67-Y0.25KW,EWRF67-Y0.37KW,EWRF67-Y0.55KW,EWRF67-Y0.75KW,EWRF67-Y1.1KW,EWRF67-Y1.5KW,EWRF67-Y100M4,EWRF67-Y112M4,EWRF67-Y132M4,EWRF67-Y2.2KW,EWRF67-Y3KW,EWRF67-Y4KW,EWRF67-Y5.5KW,EWRF67-Y63M4,EWRF67-Y7.5KW,EWRF67-Y71M4,EWRF67-Y80M4,EWRF67-Y90M4,EWRF67-YEJ100M4,EWRF67-YEJ112M4,EWRF67-YEJ132M4,EWRF67-YEJ63M4,EWRF67-YEJ71M4,EWRF67-YEJ80M4,EWRF67-YEJ90M4,EWRF67-YS100M4,EWRF67-YS112M4,EWRF67-YS132M4,EWRF67-YS63M4,EWRF67-YS71M4,EWRF67-YS80M4,EWRF67-YS90M4,EWRF67-YVP100M4,EWRF67-YVP112M4,EWRF67-YVP132M4,EWRF67-YVP63M4,EWRF67-YVP71M4,EWRF67-YVP80M4,EWRF67-YVP90M4,EWRF67-YVPEJ100M4,EWRF67-YVPEJ112M4,EWRF67-YVPEJ132M4,EWRF67-YVPEJ63M4,EWRF67-YVPEJ71M4,EWRF67-YVPEJ80M4,EWRF67-YVPEJ90M4,SLRF67-Y0.12KW,SLRF67-Y0.18KW,SLRF67-Y0.25KW,SLRF67-Y0.37KW,SLRF67-Y0.55KW,SLRF67-Y0.75KW,SLRF67-Y1.1KW,SLRF67-Y1.5KW,SLRF67-Y100M4,SLRF67-Y112M4,SLRF67-Y132M4,SLRF67-Y2.2KW,SLRF67-Y3KW,SLRF67-Y4KW,SLRF67-Y5.5KW,SLRF67-Y63M4,SLRF67-Y7.5KW,SLRF67-Y71M4,SLRF67-Y80M4,SLRF67-Y90M4,SLRF67-YEJ100M4,SLRF67-YEJ112M4,SLRF67-YEJ132M4,SLRF67-YEJ63M4,SLRF67-YEJ71M4,SLRF67-YEJ80M4,SLRF67-YEJ90M4,SLRF67-YS100M4,SLRF67-YS112M4,SLRF67-YS132M4,SLRF67-YS63M4,SLRF67-YS71M4,SLRF67-YS80M4,SLRF67-YS90M4,SLRF67-YVP100M4,SLRF67-YVP112M4,SLRF67-YVP132M4,SLRF67-YVP63M4,SLRF67-YVP71M4,SLRF67-YVP80M4,SLRF67-YVP90M4,SLRF67-YVPEJ100M4,SLRF67-YVPEJ112M4,SLRF67-YVPEJ132M4,SLRF67-YVPEJ63M4,SLRF67-YVPEJ71M4,SLRF67-YVPEJ80M4,SLRF67-YVPEJ90M4,DSZRF67-Y0.12KW,DSZRF67-Y0.18KW,DSZRF67-Y0.25KW,DSZRF67-Y0.37KW,DSZRF67-Y0.55KW,DSZRF67-Y0.75KW,DSZRF67-Y1.1KW,DSZRF67-Y1.5KW,DSZRF67-Y100M4,DSZRF67-Y112M4,DSZRF67-Y132M4,DSZRF67-Y2.2KW,DSZRF67-Y3KW,DSZRF67-Y4KW,DSZRF67-Y5.5KW,DSZRF67-Y63M4,DSZRF67-Y7.5KW,DSZRF67-Y71M4,DSZRF67-Y80M4,DSZRF67-Y90M4,DSZRF67-YEJ100M4,DSZRF67-YEJ112M4,DSZRF67-YEJ132M4,DSZRF67-YEJ63M4,DSZRF67-YEJ71M4,DSZRF67-YEJ80M4,DSZRF67-YEJ90M4,DSZRF67-YS100M4,DSZRF67-YS112M4,DSZRF67-YS132M4,DSZRF67-YS63M4,DSZRF67-YS71M4,DSZRF67-YS80M4,DSZRF67-YS90M4,DSZRF67-YVP100M4,DSZRF67-YVP112M4,DSZRF67-YVP132M4,DSZRF67-YVP63M4,DSZRF67-YVP71M4,DSZRF67-YVP80M4,DSZRF67-YVP90M4,DSZRF67-YVPEJ100M4,DSZRF67-YVPEJ112M4,DSZRF67-YVPEJ132M4,DSZRF67-YVPEJ63M4,DSZRF67-YVPEJ71M4,DSZRF67-YVPEJ80M4,DSZRF67-YVPEJ90M4,BRF67-Y0.12KW,BRF67-Y0.18KW,BRF67-Y0.25KW,BRF67-Y0.37KW,BRF67-Y0.55KW,BRF67-Y0.75KW,BRF67-Y1.1KW,BRF67-Y1.5KW,BRF67-Y100M4,BRF67-Y112M4,BRF67-Y132M4,BRF67-Y2.2KW,BRF67-Y3KW,BRF67-Y4KW,BRF67-Y5.5KW,BRF67-Y63M4,BRF67-Y7.5KW,BRF67-Y71M4,BRF67-Y80M4,BRF67-Y90M4,BRF67-YEJ100M4,BRF67-YEJ112M4,BRF67-YEJ132M4,BRF67-YEJ63M4,BRF67-YEJ71M4,BRF67-YEJ80M4,BRF67-YEJ90M4,BRF67-YS100M4,BRF67-YS112M4,BRF67-YS132M4,BRF67-YS63M4,BRF67-YS71M4,BRF67-YS80M4,BRF67-YS90M4,BRF67-YVP100M4,BRF67-YVP112M4,BRF67-YVP132M4,BRF67-YVP63M4,BRF67-YVP71M4,BRF67-YVP80M4,BRF67-YVP90M4,BRF67-YVPEJ100M4,BRF67-YVPEJ112M4,BRF67-YVPEJ132M4,BRF67-YVPEJ63M4,BRF67-YVPEJ71M4,BRF67-YVPEJ80M4,BRF67-YVPEJ90M4,GRF67-Y0.12KW,GRF67-Y0.18KW,GRF67-Y0.25KW,GRF67-Y0.37KW,GRF67-Y0.55KW,GRF67-Y0.75KW,GRF67-Y1.1KW,GRF67-Y1.5KW,GRF67-Y100M4,GRF67-Y112M4,GRF67-Y132M4,GRF67-Y2.2KW,GRF67-Y3KW,GRF67-Y4KW,GRF67-Y5.5KW,GRF67-Y63M4,GRF67-Y7.5KW,GRF67-Y71M4,GRF67-Y80M4,GRF67-Y90M4,GRF67-YEJ100M4,GRF67-YEJ112M4,GRF67-YEJ132M4,GRF67-YEJ63M4,GRF67-YEJ71M4,GRF67-YEJ80M4,GRF67-YEJ90M4,GRF67-YS100M4,GRF67-YS112M4,GRF67-YS132M4,GRF67-YS63M4,GRF67-YS71M4,GRF67-YS80M4,GRF67-YS90M4,GRF67-YVP100M4,GRF67-YVP112M4,GRF67-YVP132M4,GRF67-YVP63M4,GRF67-YVP71M4,GRF67-YVP80M4,GRF67-YVP90M4,GRF67-YVPEJ100M4,GRF67-YVPEJ112M4,GRF67-YVPEJ132M4,GRF67-YVPEJ63M4,GRF67-YVPEJ71M4,GRF67-YVPEJ80M4,GRF67-YVPEJ90M4,RCF67-Y0.12KW,RCF67-Y0.18KW,RCF67-Y0.25KW,RCF67-Y0.37KW,RCF67-Y0.55KW,RCF67-Y0.75KW,RCF67-Y1.1KW,RCF67-Y1.5KW,RCF67-Y100M4,RCF67-Y112M4,RCF67-Y132M4,RCF67-Y2.2KW,RCF67-Y3KW,RCF67-Y4KW,RCF67-Y5.5KW,RCF67-Y63M4,RCF67-Y7.5KW,RCF67-Y71M4,RCF67-Y80M4,RCF67-Y90M4,RCF67-YEJ100M4,RCF67-YEJ112M4,RCF67-YEJ132M4,RCF67-YEJ63M4,RCF67-YEJ71M4,RCF67-YEJ80M4,RCF67-YEJ90M4,RCF67-YS100M4,RCF67-YS112M4,RCF67-YS132M4,RCF67-YS63M4,RCF67-YS71M4,RCF67-YS80M4,RCF67-YS90M4,RCF67-YVP100M4,RCF67-YVP112M4,RCF67-YVP132M4,RCF67-YVP63M4,RCF67-YVP71M4,RCF67-YVP80M4,RCF67-YVP90M4,RCF67-YVPEJ100M4,RCF67-YVPEJ112M4,RCF67-YVPEJ132M4,RCF67-YVPEJ63M4,RCF67-YVPEJ71M4,RCF67-YVPEJ80M4,RCF67-YVPEJ90M4,MTDF67-Y0.12KW,MTDF67-Y0.18KW,MTDF67-Y0.25KW,MTDF67-Y0.37KW,MTDF67-Y0.55KW,MTDF67-Y0.75KW,MTDF67-Y1.1KW,MTDF67-Y1.5KW,MTDF67-Y100M4,MTDF67-Y112M4,MTDF67-Y132M4,MTDF67-Y2.2KW,MTDF67-Y3KW,MTDF67-Y4KW,MTDF67-Y5.5KW,MTDF67-Y63M4,MTDF67-Y7.5KW,MTDF67-Y71M4,MTDF67-Y80M4,MTDF67-Y90M4,MTDF67-YEJ100M4,MTDF67-YEJ112M4,MTDF67-YEJ132M4,MTDF67-YEJ63M4,MTDF67-YEJ71M4,MTDF67-YEJ80M4,MTDF67-YEJ90M4,MTDF67-YS100M4,MTDF67-YS112M4,MTDF67-YS132M4,MTDF67-YS63M4,MTDF67-YS71M4,MTDF67-YS80M4,MTDF67-YS90M4,MTDF67-YVP100M4,MTDF67-YVP112M4,MTDF67-YVP132M4,MTDF67-YVP63M4,MTDF67-YVP71M4,MTDF67-YVP80M4,MTDF67-YVP90M4,MTDF67-YVPEJ100M4,MTDF67-YVPEJ112M4,MTDF67-YVPEJ132M4,MTDF67-YVPEJ63M4,MTDF67-YVPEJ71M4,MTDF67-YVPEJ80M4,MTDF67-YVPEJ90M4,WXRF67-WSS0.12KW,WXRF67-WSS0.18KW,WXRF67-WSS0.25KW,WXRF67-WSS0.37KW,WXRF67-WSS0.55KW,WXRF67-WSS0.75KW,WXRF67-WSS1.1KW,WXRF67-WSS1.5KW,WXRF67-WSS100M4,WXRF67-WSS112M4,WXRF67-WSS132M4,WXRF67-WSS2.2KW,WXRF67-WSS3KW,WXRF67-WSS4KW,WXRF67-WSS5.5KW,WXRF67-WSS63M4,WXRF67-WSS7.5KW,WXRF67-WSS71M4,WXRF67-WSS80M4,WXRF67-WSS90M4,WXRF67-WSSB100M4,WXRF67-WSSB112M4,WXRF67-WSSB132M4,WXRF67-WSSB63M4,WXRF67-WSSB71M4,WXRF67-WSSB80M4,WXRF67-WSSB90M4,WXRF67-WSSVP100M4,WXRF67-WSSVP112M4,WXRF67-WSSVP132M4,WXRF67-WSSVP63M4,WXRF67-WSSVP71M4,WXRF67-WSSVP80M4,WXRF67-WSSVP90M4,WXRF67-WSSVPB100M4,WXRF67-WSSVPB112M4,WXRF67-WSSVPB132M4,WXRF67-WSSVPB63M4,WXRF67-WSSVPB71M4,WXRF67-WSSVPB80M4,WXRF67-WSSVPB90M4。
