RF37減速機重量：RF37減速機重量10.5公斤，RF37減速機帶電機重量分別如下

RF37減速機帶0.12KW電機重量16公斤,RF37減速機帶0.18KW電機重量16.5公斤,RF37減速機帶0.25KW電機重量20.5公斤,RF37減速機帶0.37KW電機重量21公斤,RF37減速機帶0.55KW電機重量25.5公斤,RF37減速機帶0.75KW電機重量26.5公斤,RF37減速機帶1.1KW電機重量30.5公斤,RF37減速機帶1.5KW電機重量33.5公斤,RF37減速機帶2.2KW電機重量42.5公斤,RF37減速機帶3KW電機重量45.5公斤。齒輪減速機

RF37減速機加油量：可加合成油

RF37減速機M2安裝加0.85升，RF37減速機M1安裝加0.3/0.95升，RF37減速機M3安裝加0.95升，RF37減速機M4安裝加1.05升，RF37減速機M5安裝加0.75升，RF37減速機M6安裝加0.95升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

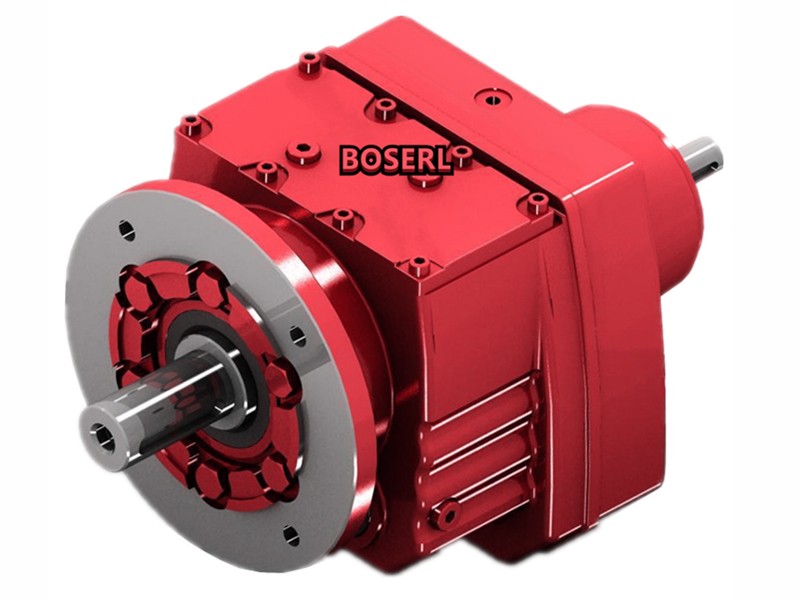

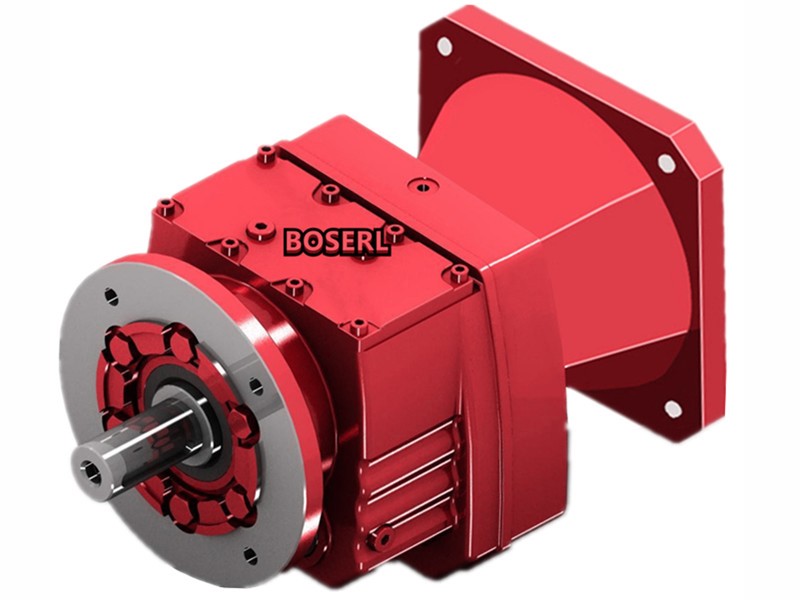

RF37減速機實物圖：圖一為RF37法蘭立式安裝斜齒輪減速機，圖二R37底腳安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

RF37減速機型號表示方法：

RF37減速機型號結構RF37-B2.2KW-4P-減速比-安裝方式-接線盒位置。

RF37減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入帶置。

RF37減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。RF系列減速電機

RF37減速機外形尺寸：輸出軸Φ25+鍵3（可定做），高151*寬149*長201（帶輸出軸）

RF37減速機參數：

RF37減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF37帶0.18KW,RF37帶0.25KW,RF37帶0.37KW,RF37帶0.55KW,RF37帶0.75KW,RF37帶1.1KW,RF37帶1.5KW,RF37帶2.2KW,RF37帶3KW。

RF37減速機輸出轉速10轉,11轉,13轉,15轉,17轉,19轉,20轉,23轉,25轉,29轉,31轉,36轉,38轉,43轉,49轉,54轉,57轉,63轉,73轉,78轉,90轉,106轉,118轉,138轉,148轉,176轉,210轉,247轉,277轉,324轉,346轉,411轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF37減速機負載扭矩112N.m,122N.m,126N.m,135N.m,142N.m,144N.m,156N.m,167N.m,170N.m,183N.m,185N.m,190N.m,200N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF37減速機減速比3.41比,4.05比,4.32比,5.06比,5.67比,6.67比,7.97比,9.47比,10.11比,11.83比,13.25比,15.6比,18.05比,19.31比,22.27比,24.42比,26.03比,28.32比,28.73比,32.4比,36.72比,39.17比,44.81比,48.08比,55.76比,61.18比,69.33比,73.96比,84.61比,90.77比,105.28比,123.66比,134.82比。

RF37減速機型號：RF37AQA80,RF37AQA100,RF37AQA115,RF37AQA140,RF37AQA160,RF37AQA190,RF37AQH80,RF37AQH100,RF37AQH115,RF37AQH140,RF37AQH160,RF37AQH190,JRTRF37-Y0.12KW,JRTRF37-Y0.18KW,JRTRF37-Y0.25KW,JRTRF37-Y0.F37KW,JRTRF37-Y0.55KW,JRTRF37-Y0.75KW,JRTRF37-Y1.1KW,JRTRF37-Y1.5KW,JRTRF37-Y100M4,JRTRF37-Y2.2KW,JRTRF37-Y3KW,JRTRF37-Y63M4,JRTRF37-Y71M4,JRTRF37-Y80M4,JRTRF37-Y90M4,JRTRF37-YEJ100M4,JRTRF37-YEJ63M4,JRTRF37-YEJ71M4,JRTRF37-YEJ80M4,JRTRF37-YEJ90M4,JRTRF37-YS100M4,JRTRF37-YS63M4,JRTRF37-YS71M4,JRTRF37-YS80M4,JRTRF37-YS90M4,JRTRF37-YVP100M4,JRTRF37-YVP63M4,JRTRF37-YVP71M4,JRTRF37-YVP80M4,JRTRF37-YVP90M4,JRTRF37-YVPEJ100M4,JRTRF37-YVPEJ63M4,JRTRF37-YVPEJ71M4,JRTRF37-YVPEJ80M4,JRTRF37-YVPEJ90M4,EWRF37-Y0.12KW,EWRF37-Y0.18KW,EWRF37-Y0.25KW,EWRF37-Y0.F37KW,EWRF37-Y0.55KW,EWRF37-Y0.75KW,EWRF37-Y1.1KW,EWRF37-Y1.5KW,EWRF37-Y100M4,EWRF37-Y2.2KW,EWRF37-Y3KW,EWRF37-Y63M4,EWRF37-Y71M4,EWRF37-Y80M4,EWRF37-Y90M4,EWRF37-YEJ100M4,EWRF37-YEJ63M4,EWRF37-YEJ71M4,EWRF37-YEJ80M4,EWRF37-YEJ90M4,EWRF37-YS100M4,EWRF37-YS63M4,EWRF37-YS71M4,EWRF37-YS80M4,EWRF37-YS90M4,EWRF37-YVP100M4,EWRF37-YVP63M4,EWRF37-YVP71M4,EWRF37-YVP80M4,EWRF37-YVP90M4,EWRF37-YVPEJ100M4,EWRF37-YVPEJ63M4,EWRF37-YVPEJ71M4,EWRF37-YVPEJ80M4,EWRF37-YVPEJ90M4,SLRF37-Y0.12KW,SLRF37-Y0.18KW,SLRF37-Y0.25KW,SLRF37-Y0.F37KW,SLRF37-Y0.55KW,SLRF37-Y0.75KW,SLRF37-Y1.1KW,SLRF37-Y1.5KW,SLRF37-Y100M4,SLRF37-Y2.2KW,SLRF37-Y3KW,SLRF37-Y63M4,SLRF37-Y71M4,SLRF37-Y80M4,SLRF37-Y90M4,SLRF37-YEJ100M4,SLRF37-YEJ63M4,SLRF37-YEJ71M4,SLRF37-YEJ80M4,SLRF37-YEJ90M4,SLRF37-YS100M4,SLRF37-YS63M4,SLRF37-YS71M4,SLRF37-YS80M4,SLRF37-YS90M4,SLRF37-YVP100M4,SLRF37-YVP63M4,SLRF37-YVP71M4,SLRF37-YVP80M4,SLRF37-YVP90M4,SLRF37-YVPEJ100M4,SLRF37-YVPEJ63M4,SLRF37-YVPEJ71M4,SLRF37-YVPEJ80M4,SLRF37-YVPEJ90M4,DSZRF37-Y0.12KW,DSZRF37-Y0.18KW,DSZRF37-Y0.25KW,DSZRF37-Y0.F37KW,DSZRF37-Y0.55KW,DSZRF37-Y0.75KW,DSZRF37-Y1.1KW,DSZRF37-Y1.5KW,DSZRF37-Y100M4,DSZRF37-Y2.2KW,DSZRF37-Y3KW,DSZRF37-Y63M4,DSZRF37-Y71M4,DSZRF37-Y80M4,DSZRF37-Y90M4,DSZRF37-YEJ100M4,DSZRF37-YEJ63M4,DSZRF37-YEJ71M4,DSZRF37-YEJ80M4,DSZRF37-YEJ90M4,DSZRF37-YS100M4,DSZRF37-YS63M4,DSZRF37-YS71M4,DSZRF37-YS80M4,DSZRF37-YS90M4,DSZRF37-YVP100M4,DSZRF37-YVP63M4,DSZRF37-YVP71M4,DSZRF37-YVP80M4,DSZRF37-YVP90M4,DSZRF37-YVPEJ100M4,DSZRF37-YVPEJ63M4,DSZRF37-YVPEJ71M4,DSZRF37-YVPEJ80M4,DSZRF37-YVPEJ90M4,BRF37-Y0.12KW,BRF37-Y0.18KW,BRF37-Y0.25KW,BRF37-Y0.F37KW,BRF37-Y0.55KW,BRF37-Y0.75KW,BRF37-Y1.1KW,BRF37-Y1.5KW,BRF37-Y100M4,BRF37-Y2.2KW,BRF37-Y3KW,BRF37-Y63M4,BRF37-Y71M4,BRF37-Y80M4,BRF37-Y90M4,BRF37-YEJ100M4,BRF37-YEJ63M4,BRF37-YEJ71M4,BRF37-YEJ80M4,BRF37-YEJ90M4,BRF37-YS100M4,BRF37-YS63M4,BRF37-YS71M4,BRF37-YS80M4,BRF37-YS90M4,BRF37-YVP100M4,BRF37-YVP63M4,BRF37-YVP71M4,BRF37-YVP80M4,BRF37-YVP90M4,BRF37-YVPEJ100M4,BRF37-YVPEJ63M4,BRF37-YVPEJ71M4,BRF37-YVPEJ80M4,BRF37-YVPEJ90M4,GRF37-Y0.12KW,GRF37-Y0.18KW,GRF37-Y0.25KW,GRF37-Y0.F37KW,GRF37-Y0.55KW,GRF37-Y0.75KW,GRF37-Y1.1KW,GRF37-Y1.5KW,GRF37-Y100M4,GRF37-Y2.2KW,GRF37-Y3KW,GRF37-Y63M4,GRF37-Y71M4,GRF37-Y80M4,GRF37-Y90M4,GRF37-YEJ100M4,GRF37-YEJ63M4,GRF37-YEJ71M4,GRF37-YEJ80M4,GRF37-YEJ90M4,GRF37-YS100M4,GRF37-YS63M4,GRF37-YS71M4,GRF37-YS80M4,GRF37-YS90M4,GRF37-YVP100M4,GRF37-YVP63M4,GRF37-YVP71M4,GRF37-YVP80M4,GRF37-YVP90M4,GRF37-YVPEJ100M4,GRF37-YVPEJ63M4,GRF37-YVPEJ71M4,GRF37-YVPEJ80M4,GRF37-YVPEJ90M4,RCF37-Y0.12KW,RCF37-Y0.18KW,RCF37-Y0.25KW,RCF37-Y0.F37KW,RCF37-Y0.55KW,RCF37-Y0.75KW,RCF37-Y1.1KW,RCF37-Y1.5KW,RCF37-Y100M4,RCF37-Y2.2KW,RCF37-Y3KW,RCF37-Y63M4,RCF37-Y71M4,RCF37-Y80M4,RCF37-Y90M4,RCF37-YEJ100M4,RCF37-YEJ63M4,RCF37-YEJ71M4,RCF37-YEJ80M4,RCF37-YEJ90M4,RCF37-YS100M4,RCF37-YS63M4,RCF37-YS71M4,RCF37-YS80M4,RCF37-YS90M4,RCF37-YVP100M4,RCF37-YVP63M4,RCF37-YVP71M4,RCF37-YVP80M4,RCF37-YVP90M4,RCF37-YVPEJ100M4,RCF37-YVPEJ63M4,RCF37-YVPEJ71M4,RCF37-YVPEJ80M4,RCF37-YVPEJ90M4,MTDF37-Y0.12KW,MTDF37-Y0.18KW,MTDF37-Y0.25KW,MTDF37-Y0.F37KW,MTDF37-Y0.55KW,MTDF37-Y0.75KW,MTDF37-Y1.1KW,MTDF37-Y1.5KW,MTDF37-Y100M4,MTDF37-Y2.2KW,MTDF37-Y3KW,MTDF37-Y63M4,MTDF37-Y71M4,MTDF37-Y80M4,MTDF37-Y90M4,MTDF37-YEJ100M4,MTDF37-YEJ63M4,MTDF37-YEJ71M4,MTDF37-YEJ80M4,MTDF37-YEJ90M4,MTDF37-YS100M4,MTDF37-YS63M4,MTDF37-YS71M4,MTDF37-YS80M4,MTDF37-YS90M4,MTDF37-YVP100M4,MTDF37-YVP63M4,MTDF37-YVP71M4,MTDF37-YVP80M4,MTDF37-YVP90M4,MTDF37-YVPEJ100M4,MTDF37-YVPEJ63M4,MTDF37-YVPEJ71M4,MTDF37-YVPEJ80M4,MTDF37-YVPEJ90M4,WXRF37-WSS0.12KW,WXRF37-WSS0.18KW,WXRF37-WSS0.25KW,WXRF37-WSS0.F37KW,WXRF37-WSS0.55KW,WXRF37-WSS0.75KW,WXRF37-WSS1.1KW,WXRF37-WSS1.5KW,WXRF37-WSS100M4,WXRF37-WSS2.2KW,WXRF37-WSS3KW,WXRF37-WSS63M4,WXRF37-WSS71M4,WXRF37-WSS80M4,WXRF37-WSS90M4,WXRF37-WSSB100M4,WXRF37-WSSB63M4,WXRF37-WSSB71M4,WXRF37-WSSB80M4,WXRF37-WSSB90M4,WXRF37-WSSVP100M4,WXRF37-WSSVP63M4,WXRF37-WSSVP71M4,WXRF37-WSSVP80M4,WXRF37-WSSVP90M4,WXRF37-WSSVPB100M4,WXRF37-WSSVPB63M4,WXRF37-WSSVPB71M4,WXRF37-WSSVPB80M4,WXRF37-WSSVPB90M4。
