SAF87減速機加電機重量：

SAF87減速機加0.75KW電機重量119KG，SAF87減速機加1.1KW電機重量123KG，SAF87減速機加1.5KW電機重量126KG，SAF87減速機加2.2KW電機重量135KG，SAF87減速機加3KW電機重量138KG，SAF87減速機加4KW電機重量149KG，SAF87減速機加5.5KW電機重量163KG，SAF87減速機加7.5KW電機重量176KG，SAF87減速機加11KW電機重量218KG，SAF87減速機加15KW電機重量238KG。

SAF87減速機加油量：可加齒輪潤滑油

SAF87減速機M4安裝形式加12L，SAF87減速機M3安裝形式加7.1-10.1L，SAF87減速機M2安裝形式加8L，SAF87減速機M1安裝形式加3.8L，SAF87減速機M5安裝形式加9.1L，SAF87減速機M6安裝形式加9.1L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

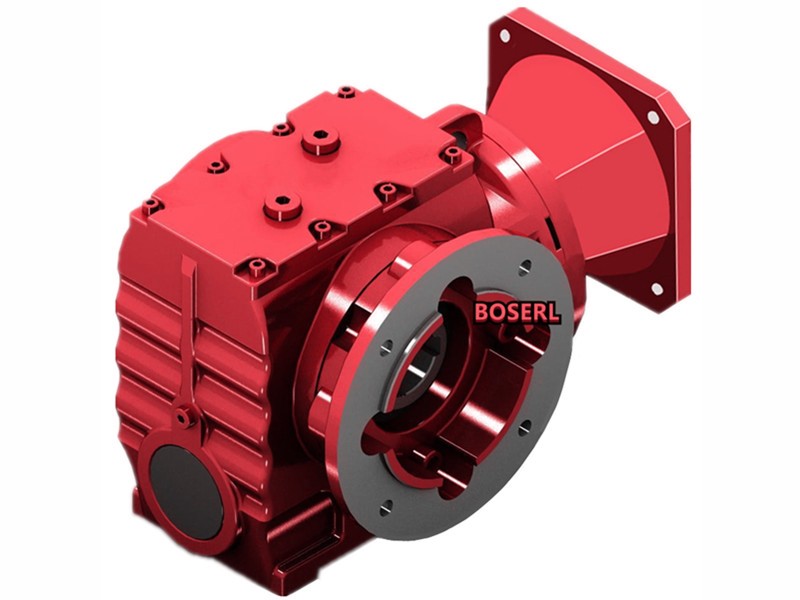

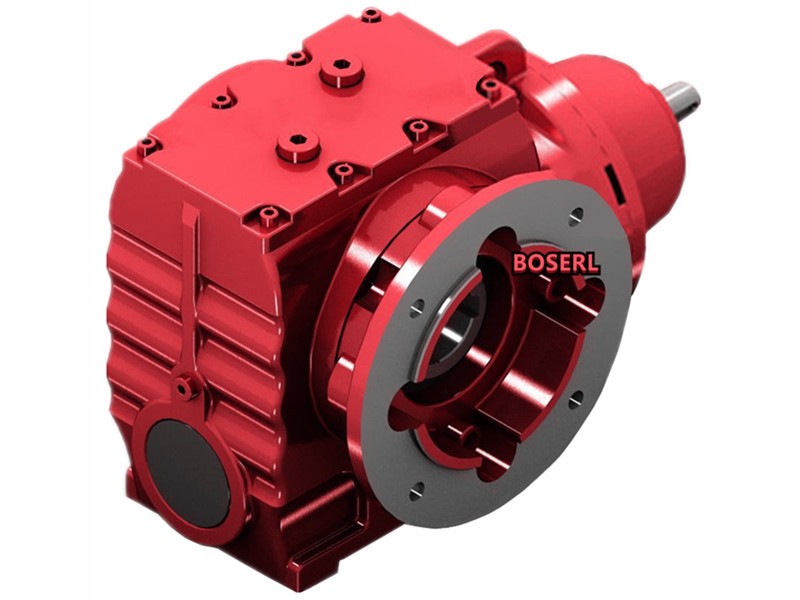

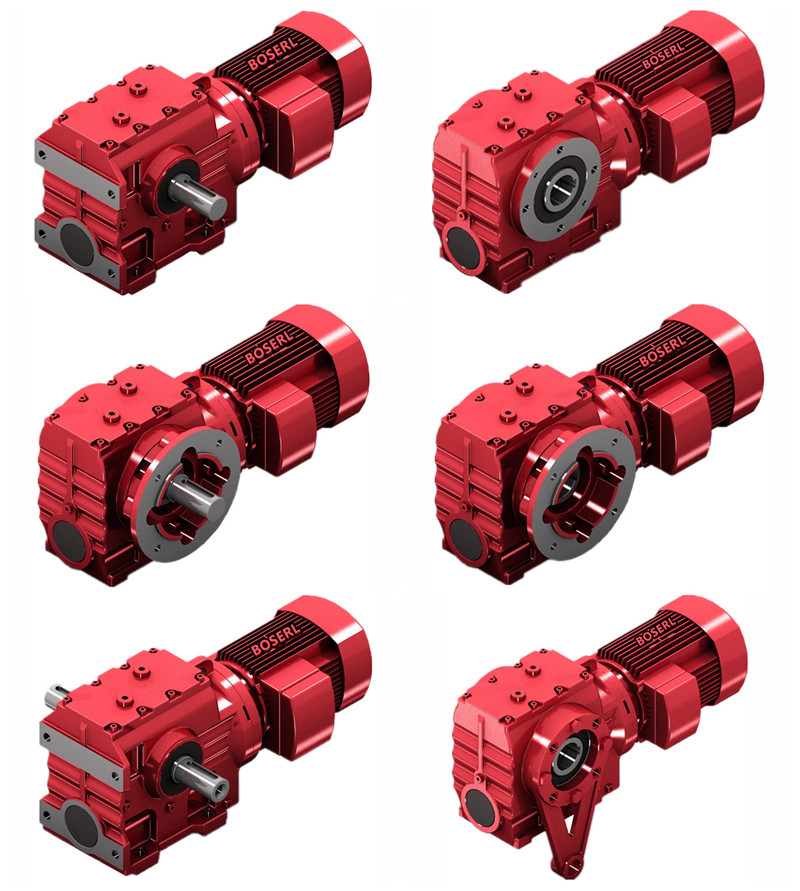

SAF87減速機實物圖：圖一為SAF87立式通孔斜齒輪蝸輪蝸桿減速電機，圖二S87加自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF87具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SA87臥式中孔軸斜齒輪減速機。

SAF87減速機型號表示方法：

SAF87減速機型號結構SAF87-B5.5KW-4P-減速比-安裝形式-接線盒位置。

SAF87減速機性能參數表結構說明：Frame size代表基座規格，K代表服務系數，T扭力臂，E編碼器，HF手動釋放裝置加自鎖功能，TF電機熱保護裝置，SAF87，S87，SF87，SA87減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。自鎖減速機

SAF87減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SAF87減速機參數：

SAF87減速機輸出扭矩2280N.m，2260N.m，2210N.m，2150N.m，2100N.m，2060N.m，2000N.m，1960N.m，1510N.m，1880N.m，1600N.m，1820N.m，1700N.m，1240N.m，1140N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SAF87減速機減速比288比，258.18比，222.4比，202.96比，180比，151.3比，139.05比，123.48比，110.4比，99.26比，91.2比，86.15比，81.76比，77.14比，70.43比，64.27比，64比，57比，47.91比，44.03比，39.1比，34.96比，31.43比，27.28比，25.5比，24.43比，21.43比，20.27比，19.7比，17.49比，15.64比，14.06比，12.21比，10.93比，9.07比，7.88比

SAF87減速機輸出轉數4.9轉，5.4轉，6.3轉，6.9轉，7.8轉，9.3轉，10轉，11轉，14轉，15轉，16轉，17轉，18轉，20轉，22轉，25轉，29轉，32轉，36轉，40轉，45轉，51轉，55轉，57轉，65轉，69轉，71轉，80轉，90轉，100轉，115轉，128轉，154轉，178轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SAF87減速機電機可加三相，直流，變頻，剎車，防爆，伺服，交流，單相電機SAF87加0.75KW，SAF87加1.1KW，SAF87加1.5KW，SAF87加2.2KW，SAF87加3KW，SAF87加4KW，SAF87加5.5KW，SAF87加7.5KW，SAF87加11KW，SAF87加15KW。

SAF87減速機外觀尺寸：輸出孔直徑Φ60+鍵4.4（可定做），高368*寬305（帶輸出法蘭）*長340

SAF87減速機型號：SAF87AQA80,SAF87AQA100,SAF87AQA115,SAF87AQA140,SAF87AQA160,SAF87AQA190,SAF87AQH80,SAF87AQH100,SAF87AQH115,SAF87AQH140,SAF87AQH160,SAF87AQH190,JRTSAF87-Y0.55KW,JRTSAF87-Y0.75KW,JRTSAF87-Y1.1KW,JRTSAF87-Y1.5KW,JRTSAF87-Y100M4,JRTSAF87-Y112M4,JRTSAF87-Y11KW,JRTSAF87-Y132M4,JRTSAF87-Y15KW,JRTSAF87-Y160M4,JRTSAF87-Y2.2KW,JRTSAF87-Y3KW,JRTSAF87-Y4KW,JRTSAF87-Y5.5KW,JRTSAF87-Y7.5KW,JRTSAF87-Y71M4,JRTSAF87-Y80M4,JRTSAF87-Y90M4,JRTSAF87-YEJ100M4,JRTSAF87-YEJ112M4,JRTSAF87-YEJ132M4,JRTSAF87-YEJ160M4,JRTSAF87-YEJ71M4,JRTSAF87-YEJ80M4,JRTSAF87-YEJ90M4,JRTSAF87-YS100M4,JRTSAF87-YS112M4,JRTSAF87-YS132M4,JRTSAF87-YS160M4,JRTSAF87-YS71M4,JRTSAF87-YS80M4,JRTSAF87-YS90M4,JRTSAF87-YVP100M4,JRTSAF87-YVP112M4,JRTSAF87-YVP132M4,JRTSAF87-YVP160M4,JRTSAF87-YVP71M4,JRTSAF87-YVP80M4,JRTSAF87-YVP90M4,JRTSAF87-YVPEJ100M4,JRTSAF87-YVPEJ112M4,JRTSAF87-YVPEJ132M4,JRTSAF87-YVPEJ160M4,JRTSAF87-YVPEJ71M4,JRTSAF87-YVPEJ80M4,JRTSAF87-YVPEJ90M4,EWSAF87-Y0.55KW,EWSAF87-Y0.75KW,EWSAF87-Y1.1KW,EWSAF87-Y1.5KW,EWSAF87-Y100M4,EWSAF87-Y112M4,EWSAF87-Y11KW,EWSAF87-Y132M4,EWSAF87-Y15KW,EWSAF87-Y160M4,EWSAF87-Y2.2KW,EWSAF87-Y3KW,EWSAF87-Y4KW,EWSAF87-Y5.5KW,EWSAF87-Y7.5KW,EWSAF87-Y71M4,EWSAF87-Y80M4,EWSAF87-Y90M4,EWSAF87-YEJ100M4,EWSAF87-YEJ112M4,EWSAF87-YEJ132M4,EWSAF87-YEJ160M4,EWSAF87-YEJ71M4,EWSAF87-YEJ80M4,EWSAF87-YEJ90M4,EWSAF87-YS100M4,EWSAF87-YS112M4,EWSAF87-YS132M4,EWSAF87-YS160M4,EWSAF87-YS71M4,EWSAF87-YS80M4,EWSAF87-YS90M4,EWSAF87-YVP100M4,EWSAF87-YVP112M4,EWSAF87-YVP132M4,EWSAF87-YVP160M4,EWSAF87-YVP71M4,EWSAF87-YVP80M4,EWSAF87-YVP90M4,EWSAF87-YVPEJ100M4,EWSAF87-YVPEJ112M4,EWSAF87-YVPEJ132M4,EWSAF87-YVPEJ160M4,EWSAF87-YVPEJ71M4,EWSAF87-YVPEJ80M4,EWSAF87-YVPEJ90M4,SLSAF87-Y0.55KW,SLSAF87-Y0.75KW,SLSAF87-Y1.1KW,SLSAF87-Y1.5KW,SLSAF87-Y100M4,SLSAF87-Y112M4,SLSAF87-Y11KW,SLSAF87-Y132M4,SLSAF87-Y15KW,SLSAF87-Y160M4,SLSAF87-Y2.2KW,SLSAF87-Y3KW,SLSAF87-Y4KW,SLSAF87-Y5.5KW,SLSAF87-Y7.5KW,SLSAF87-Y71M4,SLSAF87-Y80M4,SLSAF87-Y90M4,SLSAF87-YEJ100M4,SLSAF87-YEJ112M4,SLSAF87-YEJ132M4,SLSAF87-YEJ160M4,SLSAF87-YEJ71M4,SLSAF87-YEJ80M4,SLSAF87-YEJ90M4,SLSAF87-YS100M4,SLSAF87-YS112M4,SLSAF87-YS132M4,SLSAF87-YS160M4,SLSAF87-YS71M4,SLSAF87-YS80M4,SLSAF87-YS90M4,SLSAF87-YVP100M4,SLSAF87-YVP112M4,SLSAF87-YVP132M4,SLSAF87-YVP160M4,SLSAF87-YVP71M4,SLSAF87-YVP80M4,SLSAF87-YVP90M4,SLSAF87-YVPEJ100M4,SLSAF87-YVPEJ112M4,SLSAF87-YVPEJ132M4,SLSAF87-YVPEJ160M4,SLSAF87-YVPEJ71M4,SLSAF87-YVPEJ80M4,SLSAF87-YVPEJ90M4,DSZSAF87-Y0.55KW,DSZSAF87-Y0.75KW,DSZSAF87-Y1.1KW,DSZSAF87-Y1.5KW,DSZSAF87-Y100M4,DSZSAF87-Y112M4,DSZSAF87-Y11KW,DSZSAF87-Y132M4,DSZSAF87-Y15KW,DSZSAF87-Y160M4,DSZSAF87-Y2.2KW,DSZSAF87-Y3KW,DSZSAF87-Y4KW,DSZSAF87-Y5.5KW,DSZSAF87-Y7.5KW,DSZSAF87-Y71M4,DSZSAF87-Y80M4,DSZSAF87-Y90M4,DSZSAF87-YEJ100M4,DSZSAF87-YEJ112M4,DSZSAF87-YEJ132M4,DSZSAF87-YEJ160M4,DSZSAF87-YEJ71M4,DSZSAF87-YEJ80M4,DSZSAF87-YEJ90M4,DSZSAF87-YS100M4,DSZSAF87-YS112M4,DSZSAF87-YS132M4,DSZSAF87-YS160M4,DSZSAF87-YS71M4,DSZSAF87-YS80M4,DSZSAF87-YS90M4,DSZSAF87-YVP100M4,DSZSAF87-YVP112M4,DSZSAF87-YVP132M4,DSZSAF87-YVP160M4,DSZSAF87-YVP71M4,DSZSAF87-YVP80M4,DSZSAF87-YVP90M4,DSZSAF87-YVPEJ100M4,DSZSAF87-YVPEJ112M4,DSZSAF87-YVPEJ132M4,DSZSAF87-YVPEJ160M4,DSZSAF87-YVPEJ71M4,DSZSAF87-YVPEJ80M4,DSZSAF87-YVPEJ90M4,BSAF87-Y0.55KW,BSAF87-Y0.75KW,BSAF87-Y1.1KW,BSAF87-Y1.5KW,BSAF87-Y100M4,BSAF87-Y112M4,BSAF87-Y11KW,BSAF87-Y132M4,BSAF87-Y15KW,BSAF87-Y160M4,BSAF87-Y2.2KW,BSAF87-Y3KW,BSAF87-Y4KW,BSAF87-Y5.5KW,BSAF87-Y7.5KW,BSAF87-Y71M4,BSAF87-Y80M4,BSAF87-Y90M4,BSAF87-YEJ100M4,BSAF87-YEJ112M4,BSAF87-YEJ132M4,BSAF87-YEJ160M4,BSAF87-YEJ71M4,BSAF87-YEJ80M4,BSAF87-YEJ90M4,BSAF87-YS100M4,BSAF87-YS112M4,BSAF87-YS132M4,BSAF87-YS160M4,BSAF87-YS71M4,BSAF87-YS80M4,BSAF87-YS90M4,BSAF87-YVP100M4,BSAF87-YVP112M4,BSAF87-YVP132M4,BSAF87-YVP160M4,BSAF87-YVP71M4,BSAF87-YVP80M4,BSAF87-YVP90M4,BSAF87-YVPEJ100M4,BSAF87-YVPEJ112M4,BSAF87-YVPEJ132M4,BSAF87-YVPEJ160M4,BSAF87-YVPEJ71M4,BSAF87-YVPEJ80M4,BSAF87-YVPEJ90M4,GSAF87-Y0.55KW,GSAF87-Y0.75KW,GSAF87-Y1.1KW,GSAF87-Y1.5KW,GSAF87-Y100M4,GSAF87-Y112M4,GSAF87-Y11KW,GSAF87-Y132M4,GSAF87-Y15KW,GSAF87-Y160M4,GSAF87-Y2.2KW,GSAF87-Y3KW,GSAF87-Y4KW,GSAF87-Y5.5KW,GSAF87-Y7.5KW,GSAF87-Y71M4,GSAF87-Y80M4,GSAF87-Y90M4,GSAF87-YEJ100M4,GSAF87-YEJ112M4,GSAF87-YEJ132M4,GSAF87-YEJ160M4,GSAF87-YEJ71M4,GSAF87-YEJ80M4,GSAF87-YEJ90M4,GSAF87-YS100M4,GSAF87-YS112M4,GSAF87-YS132M4,GSAF87-YS160M4,GSAF87-YS71M4,GSAF87-YS80M4,GSAF87-YS90M4,GSAF87-YVP100M4,GSAF87-YVP112M4,GSAF87-YVP132M4,GSAF87-YVP160M4,GSAF87-YVP71M4,GSAF87-YVP80M4,GSAF87-YVP90M4,GSAF87-YVPEJ100M4,GSAF87-YVPEJ112M4,GSAF87-YVPEJ132M4,GSAF87-YVPEJ160M4,GSAF87-YVPEJ71M4,GSAF87-YVPEJ80M4,GSAF87-YVPEJ90M4,SCAF87-Y0.55KW,SCAF87-Y0.75KW,SCAF87-Y1.1KW,SCAF87-Y1.5KW,SCAF87-Y100M4,SCAF87-Y112M4,SCAF87-Y11KW,SCAF87-Y132M4,SCAF87-Y15KW,SCAF87-Y160M4,SCAF87-Y2.2KW,SCAF87-Y3KW,SCAF87-Y4KW,SCAF87-Y5.5KW,SCAF87-Y7.5KW,SCAF87-Y71M4,SCAF87-Y80M4,SCAF87-Y90M4,SCAF87-YEJ100M4,SCAF87-YEJ112M4,SCAF87-YEJ132M4,SCAF87-YEJ160M4,SCAF87-YEJ71M4,SCAF87-YEJ80M4,SCAF87-YEJ90M4,SCAF87-YS100M4,SCAF87-YS112M4,SCAF87-YS132M4,SCAF87-YS160M4,SCAF87-YS71M4,SCAF87-YS80M4,SCAF87-YS90M4,SCAF87-YVP100M4,SCAF87-YVP112M4,SCAF87-YVP132M4,SCAF87-YVP160M4,SCAF87-YVP71M4,SCAF87-YVP80M4,SCAF87-YVP90M4,SCAF87-YVPEJ100M4,SCAF87-YVPEJ112M4,SCAF87-YVPEJ132M4,SCAF87-YVPEJ160M4,SCAF87-YVPEJ71M4,SCAF87-YVPEJ80M4,SCAF87-YVPEJ90M4,MTNAF87-Y0.55KW,MTNAF87-Y0.75KW,MTNAF87-Y1.1KW,MTNAF87-Y1.5KW,MTNAF87-Y100M4,MTNAF87-Y112M4,MTNAF87-Y11KW,MTNAF87-Y132M4,MTNAF87-Y15KW,MTNAF87-Y160M4,MTNAF87-Y2.2KW,MTNAF87-Y3KW,MTNAF87-Y4KW,MTNAF87-Y5.5KW,MTNAF87-Y7.5KW,MTNAF87-Y71M4,MTNAF87-Y80M4,MTNAF87-Y90M4,MTNAF87-YEJ100M4,MTNAF87-YEJ112M4,MTNAF87-YEJ132M4,MTNAF87-YEJ160M4,MTNAF87-YEJ71M4,MTNAF87-YEJ80M4,MTNAF87-YEJ90M4,MTNAF87-YS100M4,MTNAF87-YS112M4,MTNAF87-YS132M4,MTNAF87-YS160M4,MTNAF87-YS71M4,MTNAF87-YS80M4,MTNAF87-YS90M4,MTNAF87-YVP100M4,MTNAF87-YVP112M4,MTNAF87-YVP132M4,MTNAF87-YVP160M4,MTNAF87-YVP71M4,MTNAF87-YVP80M4,MTNAF87-YVP90M4,MTNAF87-YVPEJ100M4,MTNAF87-YVPEJ112M4,MTNAF87-YVPEJ132M4,MTNAF87-YVPEJ160M4,MTNAF87-YVPEJ71M4,MTNAF87-YVPEJ80M4,MTNAF87-YVPEJ90M4,WXSAF87-WSS0.55KW,WXSAF87-WSS0.75KW,WXSAF87-WSS1.1KW,WXSAF87-WSS1.5KW,WXSAF87-WSS100M4,WXSAF87-WSS112M4,WXSAF87-WSS11KW,WXSAF87-WSS132M4,WXSAF87-WSS15KW,WXSAF87-WSS160M4,WXSAF87-WSS2.2KW,WXSAF87-WSS3KW,WXSAF87-WSS4KW,WXSAF87-WSS5.5KW,WXSAF87-WSS7.5KW,WXSAF87-WSS71M4,WXSAF87-WSS80M4,WXSAF87-WSS90M4,WXSAF87-WSSB100M4,WXSAF87-WSSB112M4,WXSAF87-WSSB132M4,WXSAF87-WSSB160M4,WXSAF87-WSSB71M4,WXSAF87-WSSB80M4,WXSAF87-WSSB90M4,WXSAF87-WSSVP100M4,WXSAF87-WSSVP112M4,WXSAF87-WSSVP132M4,WXSAF87-WSSVP160M4,WXSAF87-WSSVP71M4,WXSAF87-WSSVP80M4,WXSAF87-WSSVP90M4,WXSAF87-WSSVPB100M4,WXSAF87-WSSVPB112M4,WXSAF87-WSSVPB132M4,WXSAF87-WSSVPB160M4,WXSAF87-WSSVPB71M4,WXSAF87-WSSVPB80M4,WXSAF87-WSSVPB90M4。伺服電機渦輪渦桿減速機

SAF87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.fulaina.cn/product/list-safxiliejiansuji-cn.html

推薦類似型號：S87減速機
