R77減速機重量：R77減速機重量36Kg，R77減速機配電機重量分別如下：

R77減速機配0.18KW電機重量42Kg,R77減速機配0.25KW電機重量46Kg,R77減速機配0.37KW電機重量46.5Kg,R77減速機配0.55KW電機重量51Kg,R77減速機配0.75KW電機重量52Kg,R77減速機配1.1KW電機重量56Kg,R77減速機配1.5KW電機重量59Kg,R77減速機配2.2KW電機重量68Kg,R77減速機配3KW電機重量71Kg,R77減速機配4KW電機重量82Kg,R77減速機配5.5KW電機重量96Kg,R77減速機配7.5KW電機重量109Kg,R77減速機配11KW電機重量151Kg。

R77減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R77減速機M1安裝加1.2/3升，R77減速機M2安裝加3.3/4.2升，R77減速機M3安裝加3.6升，R77減速機M4安裝加3.8升，R77減速機M5安裝加2.5升，R77減速機M6安裝加3.4升。同軸減速機

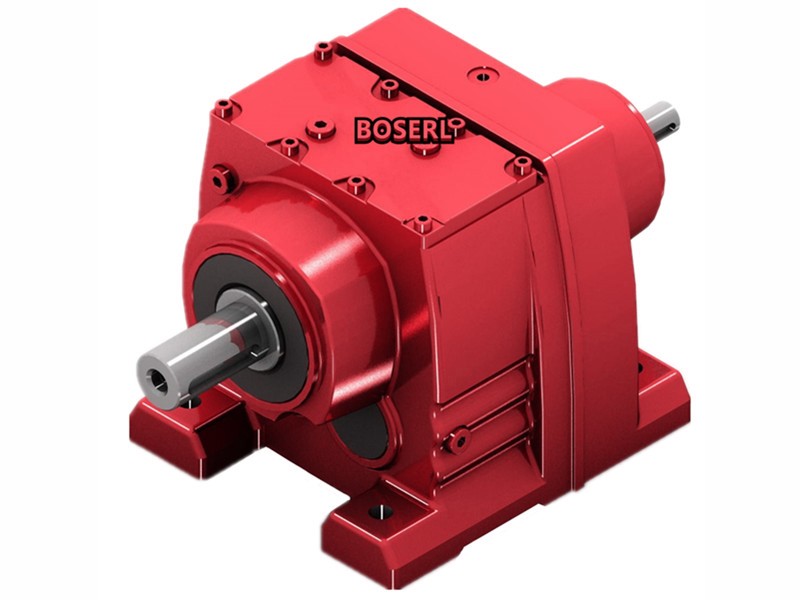

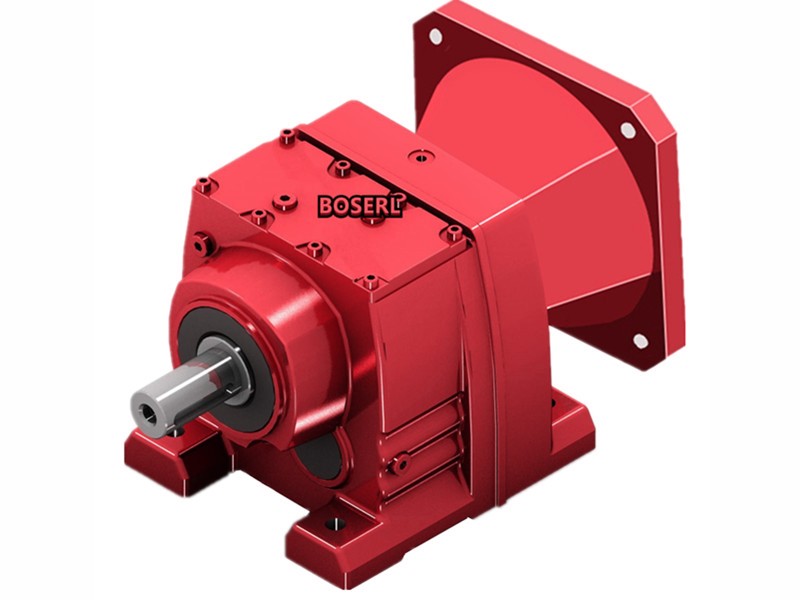

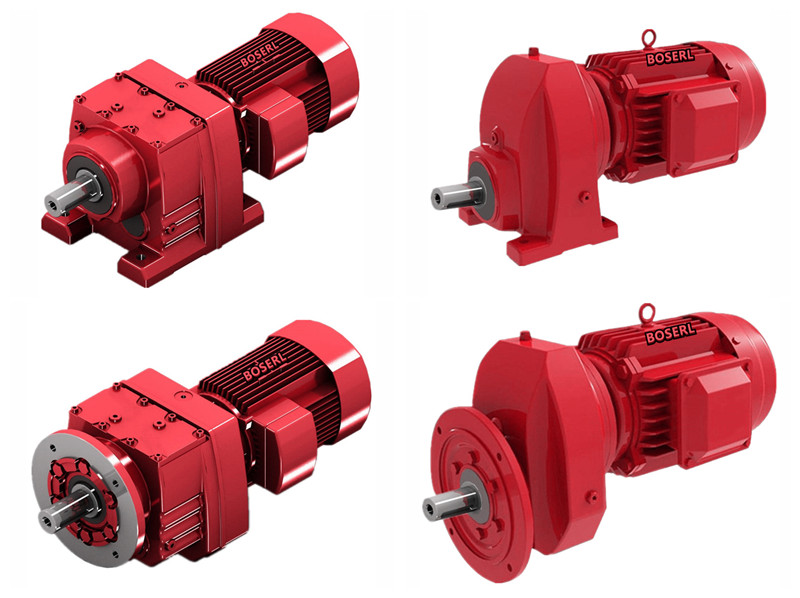

R77減速機實物圖：圖一為R77底腳安裝斜齒輪減速機，圖二RF77法蘭立式安裝斜齒輪減速機，圖三為RX77減速機不同心臥式底腳安裝，圖四為RXF77減速機不同心立式法蘭安裝。

R77減速機型號表示方法：

R77減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入配置。

R77減速機型號結構R77-B11KW-4P-減速比-安裝方式-接線盒位置。

R77減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R77減速機結構圖：R系列減速機

R77減速機參數：齒輪減速機

R77減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R77配0.18KW,R77配0.25KW,R77配0.37KW,R77配0.55KW,R77配0.75KW,R77配1.1KW,R77配1.5KW,R77配2.2KW,R77配3KW,R77配4KW,R77配5.5KW,R77配7.5KW,R77配11KW。

R77減速機減速比5.31比,5.99比,6.79比,7.74比,8.59比,9.64比,10.88比,12.33比,14.05比,15.6比,17.82比,18.8比,21.43比,23.37比,25.23比,29比,33.47比,36.83比,43.26比,52.07比,54.81比,57.68比,65.77比,77.24比,81.8比,92.97比,102.99比。

R77減速機輸出轉速7.2轉,8.4轉,9.6轉,10轉,12轉,14轉,15轉,17轉,18轉,21轉,24轉,27轉,31轉,32轉,38轉,42轉,48轉,55轉,60轉,65轉,74轉,79轉,90轉,100轉,114轉,129轉,145轉,163轉,181轉,206轉,234轉,264轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R77減速機負載扭矩510N.m,540N.m,580N.m,610N.m,630N.m,690N.m,720N.m,740N.m,780N.m,780N.m,820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

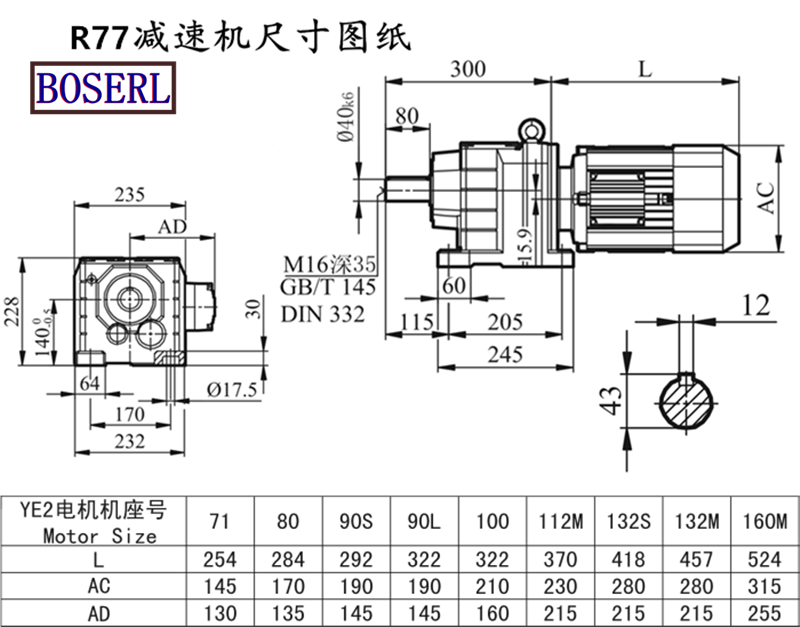

R77減速機尺寸圖紙：高228*寬232*長300（帶輸出軸）

R77減速機型號:

R77AQA80,R77AQA100,R77AQA115,R77AQA140,R77AQA160,R77AQA190,R77AQH80,R77AQH100,R77AQH115,R77AQH140,R77AQH160,R77AQH190,JRTR77-Y0.18KW,JRTR77-Y0.25KW,JRTR77-Y0.37KW,JRTR77-Y0.55KW,JRTR77-Y0.75KW,JRTR77-Y1.1KW,JRTR77-Y1.5KW,JRTR77-Y100M4,JRTR77-Y112M4,JRTR77-Y11KW,JRTR77-Y132M4,JRTR77-Y15KW,JRTR77-Y160M4,JRTR77-Y2.2KW,JRTR77-Y3KW,JRTR77-Y4KW,JRTR77-Y5.5KW,JRTR77-Y7.5KW,JRTR77-Y71M4,JRTR77-Y80M4,JRTR77-Y90M4,JRTR77-YEJ100M4,JRTR77-YEJ112M4,JRTR77-YEJ132M4,JRTR77-YEJ160M4,JRTR77-YEJ71M4,JRTR77-YEJ80M4,JRTR77-YEJ90M4,JRTR77-YS100M4,JRTR77-YS112M4,JRTR77-YS132M4,JRTR77-YS160M4,JRTR77-YS71M4,JRTR77-YS80M4,JRTR77-YS90M4,JRTR77-YVP100M4,JRTR77-YVP112M4,JRTR77-YVP132M4,JRTR77-YVP160M4,JRTR77-YVP71M4,JRTR77-YVP80M4,JRTR77-YVP90M4,JRTR77-YVPEJ100M4,JRTR77-YVPEJ112M4,JRTR77-YVPEJ132M4,JRTR77-YVPEJ160M4,JRTR77-YVPEJ71M4,JRTR77-YVPEJ80M4,JRTR77-YVPEJ90M4,EWR77-Y0.18KW,EWR77-Y0.25KW,EWR77-Y0.37KW,EWR77-Y0.55KW,EWR77-Y0.75KW,EWR77-Y1.1KW,EWR77-Y1.5KW,EWR77-Y100M4,EWR77-Y112M4,EWR77-Y11KW,EWR77-Y132M4,EWR77-Y15KW,EWR77-Y160M4,EWR77-Y2.2KW,EWR77-Y3KW,EWR77-Y4KW,EWR77-Y5.5KW,EWR77-Y7.5KW,EWR77-Y71M4,EWR77-Y80M4,EWR77-Y90M4,EWR77-YEJ100M4,EWR77-YEJ112M4,EWR77-YEJ132M4,EWR77-YEJ160M4,EWR77-YEJ71M4,EWR77-YEJ80M4,EWR77-YEJ90M4,EWR77-YS100M4,EWR77-YS112M4,EWR77-YS132M4,EWR77-YS160M4,EWR77-YS71M4,EWR77-YS80M4,EWR77-YS90M4,EWR77-YVP100M4,EWR77-YVP112M4,EWR77-YVP132M4,EWR77-YVP160M4,EWR77-YVP71M4,EWR77-YVP80M4,EWR77-YVP90M4,EWR77-YVPEJ100M4,EWR77-YVPEJ112M4,EWR77-YVPEJ132M4,EWR77-YVPEJ160M4,EWR77-YVPEJ71M4,EWR77-YVPEJ80M4,EWR77-YVPEJ90M4,SLR77-Y0.18KW,SLR77-Y0.25KW,SLR77-Y0.37KW,SLR77-Y0.55KW,SLR77-Y0.75KW,SLR77-Y1.1KW,SLR77-Y1.5KW,SLR77-Y100M4,SLR77-Y112M4,SLR77-Y11KW,SLR77-Y132M4,SLR77-Y15KW,SLR77-Y160M4,SLR77-Y2.2KW,SLR77-Y3KW,SLR77-Y4KW,SLR77-Y5.5KW,SLR77-Y7.5KW,SLR77-Y71M4,SLR77-Y80M4,SLR77-Y90M4,SLR77-YEJ100M4,SLR77-YEJ112M4,SLR77-YEJ132M4,SLR77-YEJ160M4,SLR77-YEJ71M4,SLR77-YEJ80M4,SLR77-YEJ90M4,SLR77-YS100M4,SLR77-YS112M4,SLR77-YS132M4,SLR77-YS160M4,SLR77-YS71M4,SLR77-YS80M4,SLR77-YS90M4,SLR77-YVP100M4,SLR77-YVP112M4,SLR77-YVP132M4,SLR77-YVP160M4,SLR77-YVP71M4,SLR77-YVP80M4,SLR77-YVP90M4,SLR77-YVPEJ100M4,SLR77-YVPEJ112M4,SLR77-YVPEJ132M4,SLR77-YVPEJ160M4,SLR77-YVPEJ71M4,SLR77-YVPEJ80M4,SLR77-YVPEJ90M4,DSZR77-Y0.18KW,DSZR77-Y0.25KW,DSZR77-Y0.37KW,DSZR77-Y0.55KW,DSZR77-Y0.75KW,DSZR77-Y1.1KW,DSZR77-Y1.5KW,DSZR77-Y100M4,DSZR77-Y112M4,DSZR77-Y11KW,DSZR77-Y132M4,DSZR77-Y15KW,DSZR77-Y160M4,DSZR77-Y2.2KW,DSZR77-Y3KW,DSZR77-Y4KW,DSZR77-Y5.5KW,DSZR77-Y7.5KW,DSZR77-Y71M4,DSZR77-Y80M4,DSZR77-Y90M4,DSZR77-YEJ100M4,DSZR77-YEJ112M4,DSZR77-YEJ132M4,DSZR77-YEJ160M4,DSZR77-YEJ71M4,DSZR77-YEJ80M4,DSZR77-YEJ90M4,DSZR77-YS100M4,DSZR77-YS112M4,DSZR77-YS132M4,DSZR77-YS160M4,DSZR77-YS71M4,DSZR77-YS80M4,DSZR77-YS90M4,DSZR77-YVP100M4,DSZR77-YVP112M4,DSZR77-YVP132M4,DSZR77-YVP160M4,DSZR77-YVP71M4,DSZR77-YVP80M4,DSZR77-YVP90M4,DSZR77-YVPEJ100M4,DSZR77-YVPEJ112M4,DSZR77-YVPEJ132M4,DSZR77-YVPEJ160M4,DSZR77-YVPEJ71M4,DSZR77-YVPEJ80M4,DSZR77-YVPEJ90M4,BR77-Y0.18KW,BR77-Y0.25KW,BR77-Y0.37KW,BR77-Y0.55KW,BR77-Y0.75KW,BR77-Y1.1KW,BR77-Y1.5KW,BR77-Y100M4,BR77-Y112M4,BR77-Y11KW,BR77-Y132M4,BR77-Y15KW,BR77-Y160M4,BR77-Y2.2KW,BR77-Y3KW,BR77-Y4KW,BR77-Y5.5KW,BR77-Y7.5KW,BR77-Y71M4,BR77-Y80M4,BR77-Y90M4,BR77-YEJ100M4,BR77-YEJ112M4,BR77-YEJ132M4,BR77-YEJ160M4,BR77-YEJ71M4,BR77-YEJ80M4,BR77-YEJ90M4,BR77-YS100M4,BR77-YS112M4,BR77-YS132M4,BR77-YS160M4,BR77-YS71M4,BR77-YS80M4,BR77-YS90M4,BR77-YVP100M4,BR77-YVP112M4,BR77-YVP132M4,BR77-YVP160M4,BR77-YVP71M4,BR77-YVP80M4,BR77-YVP90M4,BR77-YVPEJ100M4,BR77-YVPEJ112M4,BR77-YVPEJ132M4,BR77-YVPEJ160M4,BR77-YVPEJ71M4,BR77-YVPEJ80M4,BR77-YVPEJ90M4,GR77-Y0.18KW,GR77-Y0.25KW,GR77-Y0.37KW,GR77-Y0.55KW,GR77-Y0.75KW,GR77-Y1.1KW,GR77-Y1.5KW,GR77-Y100M4,GR77-Y112M4,GR77-Y11KW,GR77-Y132M4,GR77-Y15KW,GR77-Y160M4,GR77-Y2.2KW,GR77-Y3KW,GR77-Y4KW,GR77-Y5.5KW,GR77-Y7.5KW,GR77-Y71M4,GR77-Y80M4,GR77-Y90M4,GR77-YEJ100M4,GR77-YEJ112M4,GR77-YEJ132M4,GR77-YEJ160M4,GR77-YEJ71M4,GR77-YEJ80M4,GR77-YEJ90M4,GR77-YS100M4,GR77-YS112M4,GR77-YS132M4,GR77-YS160M4,GR77-YS71M4,GR77-YS80M4,GR77-YS90M4,GR77-YVP100M4,GR77-YVP112M4,GR77-YVP132M4,GR77-YVP160M4,GR77-YVP71M4,GR77-YVP80M4,GR77-YVP90M4,GR77-YVPEJ100M4,GR77-YVPEJ112M4,GR77-YVPEJ132M4,GR77-YVPEJ160M4,GR77-YVPEJ71M4,GR77-YVPEJ80M4,GR77-YVPEJ90M4,RC77-Y0.18KW,RC77-Y0.25KW,RC77-Y0.37KW,RC77-Y0.55KW,RC77-Y0.75KW,RC77-Y1.1KW,RC77-Y1.5KW,RC77-Y100M4,RC77-Y112M4,RC77-Y11KW,RC77-Y132M4,RC77-Y15KW,RC77-Y160M4,RC77-Y2.2KW,RC77-Y3KW,RC77-Y4KW,RC77-Y5.5KW,RC77-Y7.5KW,RC77-Y71M4,RC77-Y80M4,RC77-Y90M4,RC77-YEJ100M4,RC77-YEJ112M4,RC77-YEJ132M4,RC77-YEJ160M4,RC77-YEJ71M4,RC77-YEJ80M4,RC77-YEJ90M4,RC77-YS100M4,RC77-YS112M4,RC77-YS132M4,RC77-YS160M4,RC77-YS71M4,RC77-YS80M4,RC77-YS90M4,RC77-YVP100M4,RC77-YVP112M4,RC77-YVP132M4,RC77-YVP160M4,RC77-YVP71M4,RC77-YVP80M4,RC77-YVP90M4,RC77-YVPEJ100M4,RC77-YVPEJ112M4,RC77-YVPEJ132M4,RC77-YVPEJ160M4,RC77-YVPEJ71M4,RC77-YVPEJ80M4,RC77-YVPEJ90M4,MTD77-Y0.18KW,MTD77-Y0.25KW,MTD77-Y0.37KW,MTD77-Y0.55KW,MTD77-Y0.75KW,MTD77-Y1.1KW,MTD77-Y1.5KW,MTD77-Y100M4,MTD77-Y112M4,MTD77-Y11KW,MTD77-Y132M4,MTD77-Y15KW,MTD77-Y160M4,MTD77-Y2.2KW,MTD77-Y3KW,MTD77-Y4KW,MTD77-Y5.5KW,MTD77-Y7.5KW,MTD77-Y71M4,MTD77-Y80M4,MTD77-Y90M4,MTD77-YEJ100M4,MTD77-YEJ112M4,MTD77-YEJ132M4,MTD77-YEJ160M4,MTD77-YEJ71M4,MTD77-YEJ80M4,MTD77-YEJ90M4,MTD77-YS100M4,MTD77-YS112M4,MTD77-YS132M4,MTD77-YS160M4,MTD77-YS71M4,MTD77-YS80M4,MTD77-YS90M4,MTD77-YVP100M4,MTD77-YVP112M4,MTD77-YVP132M4,MTD77-YVP160M4,MTD77-YVP71M4,MTD77-YVP80M4,MTD77-YVP90M4,MTD77-YVPEJ100M4,MTD77-YVPEJ112M4,MTD77-YVPEJ132M4,MTD77-YVPEJ160M4,MTD77-YVPEJ71M4,MTD77-YVPEJ80M4,MTD77-YVPEJ90M4,WXR77-WSS0.18KW,WXR77-WSS0.25KW,WXR77-WSS0.37KW,WXR77-WSS0.55KW,WXR77-WSS0.75KW,WXR77-WSS1.1KW,WXR77-WSS1.5KW,WXR77-WSS100M4,WXR77-WSS112M4,WXR77-WSS11KW,WXR77-WSS132M4,WXR77-WSS15KW,WXR77-WSS160M4,WXR77-WSS2.2KW,WXR77-WSS3KW,WXR77-WSS4KW,WXR77-WSS5.5KW,WXR77-WSS7.5KW,WXR77-WSS71M4,WXR77-WSS80M4,WXR77-WSS90M4,WXR77-WSSB100M4,WXR77-WSSB112M4,WXR77-WSSB132M4,WXR77-WSSB160M4,WXR77-WSSB71M4,WXR77-WSSB80M4,WXR77-WSSB90M4,WXR77-WSSVP100M4,WXR77-WSSVP112M4,WXR77-WSSVP132M4,WXR77-WSSVP160M4,WXR77-WSSVP71M4,WXR77-WSSVP80M4,WXR77-WSSVP90M4,WXR77-WSSVPB100M4,WXR77-WSSVPB112M4,WXR77-WSSVPB132M4,WXR77-WSSVPB160M4,WXR77-WSSVPB71M4,WXR77-WSSVPB80M4,WXR77-WSSVPB90M4。

R77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.fulaina.cn/product/list-rxiliejiansuji-cn.html
